Build spec's

Our material choice and build explained.

Our gel coat - a special formula that is sprayed into the mould ( typical weight saving is upto 1kg per deck or hull )
Why we only use epoxy resin:
Epoxy resin has 75% fewer VOCs (Volatile Organic Compounds) contained in the resin itself and two-thirds fewer VOCs are released into the atmosphere than from polyester/vinylester resin. VOCs are a source of air pollution and can be a significant health hazard.
Safer and better for the environment ( No Styrenes released into the atmosphere )
Epoxy Resins have performance advantages over polyester and vinyl esters in these main areas.

Better adhesive qualities.
Superior mechanical properties. (Structurally a post cured epoxy pipe exhibits tensile strength and modulus close to double that of polyester or vinyl ester)..
Improved resistance to fatigue and micro cracking.
Reduced degradation from water ingress.
Inceased resistance to osmosis
Reduced thermal and chemical shrinkage (Cosmetically polyester and vinyl resins typically shrink up to 7% whilst epoxy shrink up to 2%).
  ( we found a weight saving aprox 1 kg over vinylester resin)  .

Using only one type of high spec resin through out the boat makes a better product in every way!
(Intersting data here:https://www.compresdev.co.uk/CRD%20The%20Use%20and%20Application%20of%20Epoxy%20Resin%20vs%20Vinylester%20vs%20Polyester.pdf



Our Foam Core:
Now made from 100% recycled PET plastic ( recycled fizzy drink bottles) .
It out performs any other foam core on the market for strength and weight.
So why not ? We thought it was worth the investment.


Our seams:
Newer models: Halo, Edge, Matrix , Banshee, Vamp, Viking  and Bandit have an inner seam that is part of the boat (no inner taping) , the deck and hull are bonded together with a special epoxy that closely matches the laminate epoxy making deck and hull become one peice. The join is incredibly strong and the added mechanical strength of the inner seam makes the boats very stiff.
Our outer micro seam is a crystal clear epoxy and bonds our signature black composite seam tape to the gel coat,  leaving minimal seam area. This avoids disruputing  the way the rails work with the water the way larger standard gelcoat seams do.

Our fin boxes. We found that over time plastic fin boxes or mounts gradually give in to the forces they are subject to and fail leaving for an expensive repair. So, we devised our own special anodised alloy fin box,  now in it's second generation it is now shorter , lighter and even stronger than any other fin box on the market.

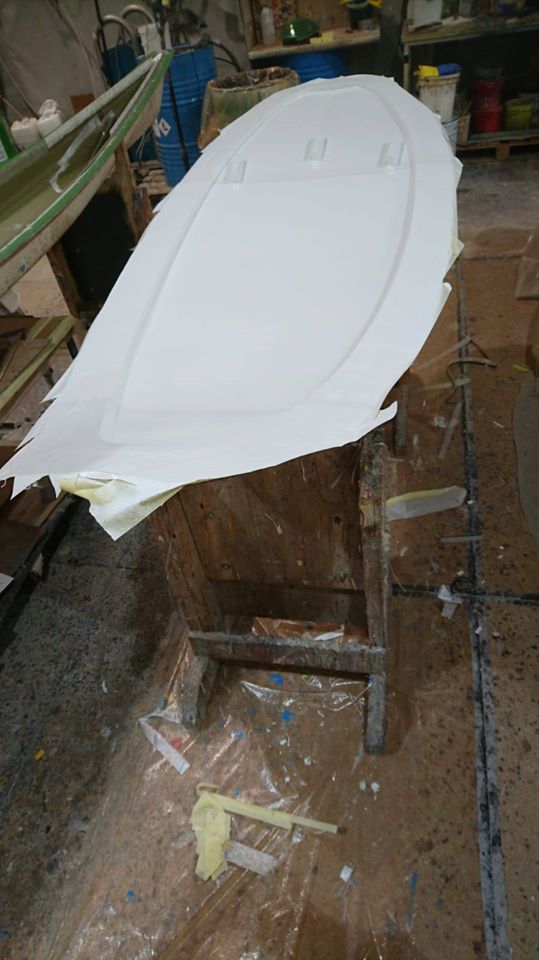

We vac bag our hulls to give superior strength for less weight.

We oven cure our deck and hulls because epoxy resin gets even stronger when heat is applied when cureing.



Construction / Lay up options

Surf Kayaks



Plastic PE



Surf grade plastic (Kahuna, Neutron X, Neutron, Maverick and Xray)

Carbon Kevlar 1





Oven cured Epoxy deck and hull

Deck is: Lightweight sprayed gel coat on E Glass deck
Hull is:  Lightweight sprayed gel coat on E-Glass with special core and an inner layer of Carbon Kevlar.
Hull is now vac bagged !

Aproximate boat weight  12kg



Carbon 1



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on E Glass
Hull is: Lightweight sprayed gel coat on E-Glass with special core and an inner layer of Carbon .
Hull is now vac bagged !

Aproximate boat weight  12kg

Super light:



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on E Glass x 2 Carbon Kevlar x2
Hull is:  Lightweight sprayed gel coat on E Glass x 2 Carbon Kevlar x2  with special core ( inner layers  Carbon Kevlar).
Hull is now vac bagged !

Aproximate boat weight  10kg

Super light Carbon +



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on E Glass x 2, Carbon Kevlar x1, Carbon x 1
Hull is: Lightweight sprayed gel coat on E Glass x 2, Carbon Kevlar x1, Carbon x1 with special core ( inner layers  Carbon).
Hull is now vac bagged !

Aproximate boat weight  10kg

X-tech:



Oven cured Epoxy deck and hull
Deck is Deck is: Lightweight sprayed gel coat on E Glass x 2, Carbon Kevlar x2
Hull is Vac bagged  Carbon Kevlar x2, E-Glass x1 with honeycombe core /foam core ( inner layers  Carbon Kevlar).

Hull can now be coloured or bare carbon kevlar (No cost option)

Aproximate boat weight  8-9kg

X-tech Carbon +



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on E Glass x 2, Carbon Kevlar x1 Carbon x1
Hull is Vac bagged  Carbon  x2, E-Glass x1 with honeycombe core /foam core ( inner layers  Carbon ).

Hull can now be coloured or bare carbon kevlar (No cost option)

Aproximate boat weight  8-9kg

Carbolite Pro



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on
Vac bagged Carbon or Carbon Kevlar x2 with a very special core.
Hull is Vac bagged Carbon or  Carbon Kevlar x3 with honeycombe core /foam core ( inner layers  Carbon or  carbon kevlar).

Hull can now be coloured or bare carbon kevlar (No cost option)

Aproximate boat weight  7-8kg



Elite
Featherlite spec

Especially for the weight weenies out there. The closest thing to an F1 spec we can think of!
This is a full epoxy vac bagged oven cured special build!

No gel on deck or hull , foam core deck as well as hull  (lighter , stiffer , stronger) , custom lay up to suit each individual paddlers requirements .

Materials used , Carbon, Carbon Kevlar and Carbon Dyneema.
Outer seam removed putting the boat back to its most natural form .
Rolled and intergrated cockpit rim with special thigh braces.

No stone left unturned to reduce weight, improve stiffness and surfing response!

Aproximate boat weight --- sub 7kg




Sea Kayaks

Carbon Kevlar 1





Epoxy deck and hull

Deck is: Lightweight sprayed gel coat on E Glass deck
Hull is:  Lightweight sprayed gel coat on E-Glass with special core and an inner layer of Carbon Kevlar.

Aproximate boat weight  23 - 26kg



Super light:



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on E Glass x 2
Hull is:  Lightweight sprayed gel coat on E Glass x 2 Carbon Kevlar x2  with special core ( inner layers  Carbon Kevlar).
Hull is now vac bagged !

Aproximate boat weight  20-24kg

X-tech:



Oven cured Epoxy deck and hull
Deck is Deck is: Lightweight sprayed gel coat on E Glass x 1, Carbon Kevlar x1
Hull is Vac bagged  Carbon Kevlar x2, E-Glass x1 with honeycombe core /foam core ( inner layers  Carbon Kevlar).

Hull can now be coloured or bare carbon kevlar (No cost option)

Aproximate boat weight  17- 20kg

Carbolite Pro



Oven cured Epoxy deck and hull
Deck is: Lightweight sprayed gel coat on
Vac bagged Carbon or Carbon Kevlar x2 with a very special core.
Hull is Vac bagged Carbon or  Carbon Kevlar x3 with honeycombe core /foam core ( inner layers  Carbon or  carbon kevlar).

Hull can now be coloured or bare carbon kevlar (No cost option)

Aproximate boat weight  14- 17 kg



Elite
Featherlite spec

Especially for the weight weenies out there. The closest thing to an F1 spec we can think of!
This is a full epoxy vac bagged oven cured special build!

No gel on deck or hull , foam core deck as well as hull  (lighter , stiffer , stronger) , custom lay up to suit each individual paddlers requirements .

Materials used , Carbon, Carbon Kevlar and Carbon Dyneema.

Rolled and intergrated cockpit rim with special thigh braces.

No stone left unturned to reduce weight, improve stiffness and response!

Aproximate boat weight --- sub 12 - 15 kg depending on model.



Canoes

Carbon Kevlar 1






Hull is:  Lightweight sprayed gel coat on E-Glass with special core and an inner layer of Carbon Kevlar.
Hull is now vac bagged !


Beautifully finished Ash gunnels and seats

Aproximate boat weight  24-26kg



Super light:




Hull is:  Lightweight sprayed gel coat on E Glass x 3 Carbon Kevlar x1  with special core ( inner layer  Carbon Kevlar).
Hull is now vac bagged !


Beautifully finished Ash gunnels and seats

Aproximate boat weight  19-23 kg

X-tech:




Hull is Lightweight sprayed gel .Vac bagged  Carbon Kevlar x2, E-Glass x1 with honeycombe core /foam core ( inner layers  Carbon Kevlar).


Aproximate boat weight 17-20 kg

Carbolite Pro




Hull is Vac bagged Carbon or  Carbon Kevlar x3 with honeycombe core /foam core ( inner layers  Carbon or  carbon kevlar).

Hull can now be coloured or bare carbon kevlar (No cost option)

Aproximate boat weight  16-19kg



Elite
Featherlite spec

Especially for the weight weenies out there. The closest thing to an F1 spec we can think of!
This is a full epoxy vac bagged special build!

Pure Carbon finish hull with foam core . It looks absolutley stunning !

Materials used in the boat build are, Carbon, Carbon Kevlar and Carbon Dyneema.
It's as high tech as it is possible to get!

The Gunnels are Pure carbon, the seals and end caps pure carbon.

No stone left unturned to reduce weight, improve stiffness and response!

Aproximate boat weight --- sub 12-14kg depending on boat size and seats


 Polo Kayaks


Club

Kit you club out , super tough and durable .




Lightweight sprayed gel coat on E-Glass with special core in hull and an inner layer of Diolene.

All epoxy build



Aproximate boat weight  12kg



Team Spec

A spec for club team members on a budget , Strong , light and durable.


Lightweight sprayed gel coat on E-Glass and carbon kevlar with special core in hull and an inner layer of Carbon Kevlar.

Vac bagged hull

All epoxy build



Aproximate boat weight  9kg



Carbolite Pro

A spec for competing at the highest level


No stone left unturned to save weight, improve stiffness, response.

Aproximate boat weight  7.5kg



Rock hard carbon Pro

A spec for competing at the highest level

An awesome "Rock Hard" build of Carbon bonded with reinforcement material and foam core . The deck and hull are vac bagged
No stone left unturned to Increase strength and save weight, improve stiffness, response and durability.

Aproximate boat weight 10.5kg
